Funbikes Xtrax E-Sport
FunBikes - Electric Junior Quad

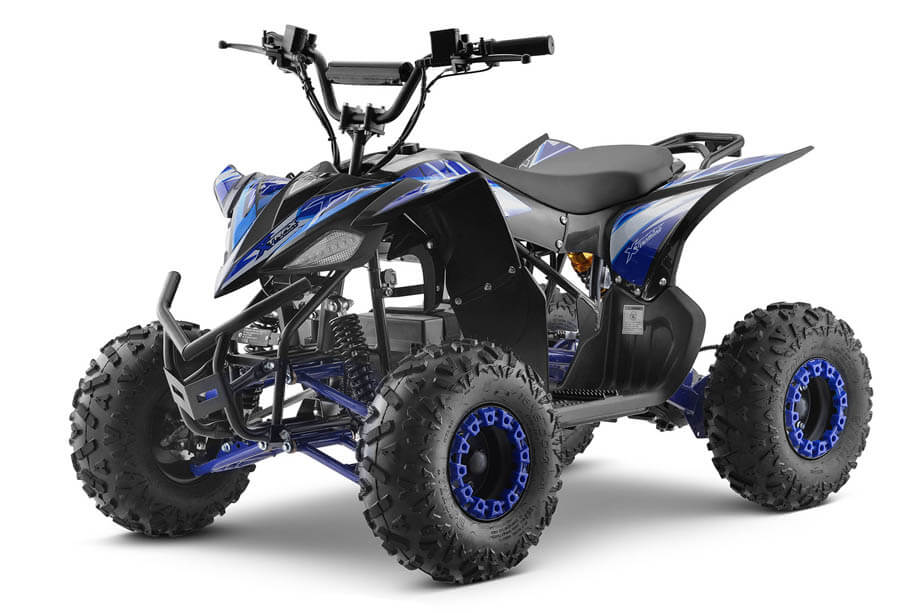

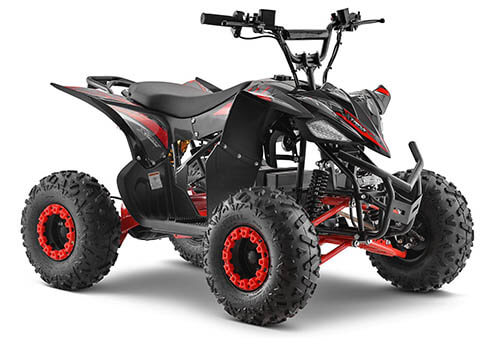

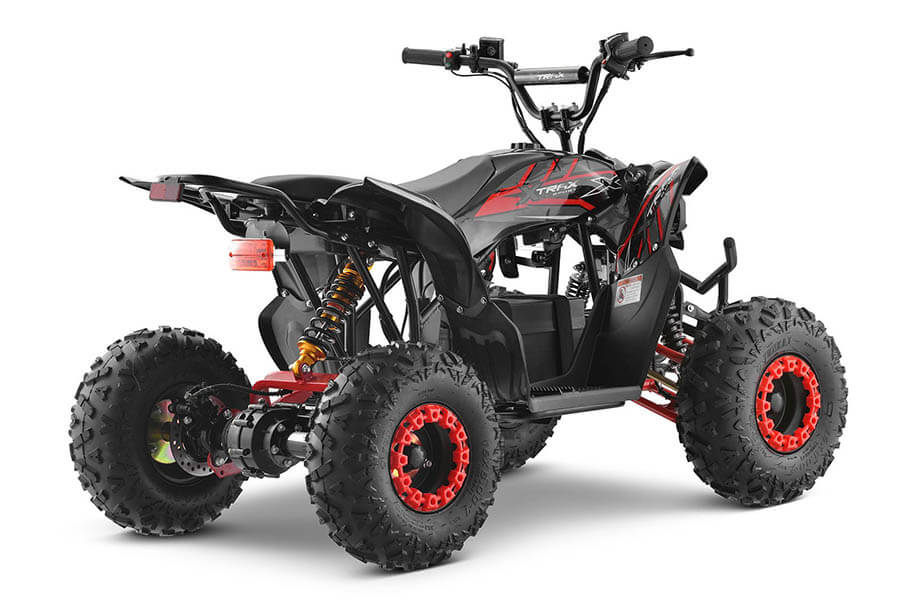

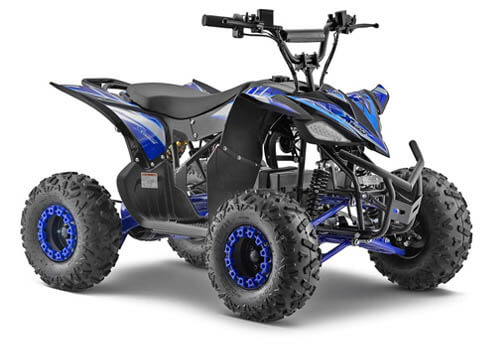

Funbikes Xtrax E-Sport Shaft Drive Junior Quad Bike
The Xtrax E-Sport Shaft Drive Junior Quad Bike is the latest and most powerful addition to the Funbikes electric quad range. Supplied “Ready to Ride” with free assembly, testing, and a full pre-delivery inspection, it’s delivered securely strapped to a pallet via a trusted courier.
Powered by a hi-torque brushless shaft-driven motor, this quad offers minimal maintenance and maximum performance, reaching an impressive top speed of 44 km/h — making it one of the fastest and most thrilling junior quads available.
The high-torque gear ratio makes it suitable for various terrains, including flat grounds, hills, gradients, and off-road tracks.
Key Features
- Hi-Torque Brushless Shaft-Driven Motor – Increased power and torque with low maintenance requirements.
- Electronic Ignition Barrel – Secure key ignition for added safety and control.
- Variable Speed Limit Controls:
- 14 km/h (9 mph) – Beginner mode
- 28 km/h (17 mph) – Intermediate mode
- 44 km/h (27 mph) – Expert mode
- Easy Twistgrip Throttle – Provides smooth and responsive control over speed.
- Forward and Reverse Gears – Simple and easy-to-use switch with an off position in the middle.
- Off-Road Knobbly Tyres – Durable tyres designed for extra grip on uneven terrain and smooth handling on rough ground.
Build Quality
- High-quality components for long-term durability and reduced maintenance.
- Shaft drive system for improved reliability and smoother power delivery.
- Fully tested and inspected before delivery for a true “Ready to Ride” experience.
- Supported by free lifetime technical support and a comprehensive warranty.
Specifications
- Max Speed: 44 km/h (27 mph)
- Speed Settings: 14 km/h / 28 km/h / 44 km/h
- Motor: Hi-Torque Brushless Shaft-Driven
- Brakes: Hydraulic rear brake
- Tyres: Off-road knobbly tyres
Suitability
- Recommended for ages 10–15 years
- The product’s suitability depends on the child’s height, weight, and skill level — parental discretion advised.
Electronic Ignition Barrel
Utilising a key barrel ignition to keep the quad secure. The key is required to turn the quad on, aiding in keeping the E-Sport secure.
Off-road Knobbly Tyres
The long-wearing knobbly tyres provide extra grip to cope with uneven terrain and smooth riding on rougher ground for even more fun.
Easy Twistgrip Throttle
The twistgrip throttle makes it easier to control the level of speed when handling these quad bikes.
Forward and Reverse Gears
Easy to operate forward and reverse switch with an off position in the middle.
Variable Speed Limit Controls
Fitted with a 3 position variable speed limiter, the E-Sport can be set to 14km/h, 28km/h and 44km/h.
| Battery Specification | 48 Volt – 20AH |
|---|---|
| Battery Type | Lead Acid |
| Body Material | Plastic |
| Boxed Dimensions | L129cm x W76cm x H60cm |
| Brakes | Front and Rear Hydraulic Disc Brakes |
| Built Dimensions | L144cm x W94cm x H95cm |
| Charge Time | 8 – 10 Hours |
| Clutch | Automatic |
| Engine Spec | Electric Motor |
| Engine Type | Electric Motor |
| Frame | Chromoly Steel |
| Gross Weight | 120 Kg |
| Lights | Front – Rear – Brake |
| Max Rider Weight | 85 Kg |
| Motor Size | 1000w |
| Net Weight | 108 Kg |
| Other Specs | This product offers water resistance, but it is not waterproof – not suitable for immersion in water |
| Requires Some Assembly | No – Fully Assembled |
| Rim Size | F: 7 inch – R: 7 inch |
| Safety Features | Fully Enclosed Safety Foot Wells |
| Seat Height | Seat to Footrests 46cm |
| Suitability | Guide 11-14 At Parents Discretion – Height, Weight & Skill should be considered |
| Suspension | Hydraulic Shock Absorber / Front A Swing Arm / Rear Mono Shock |
| Throttle Type | Twistgrip |
| Top Speed | 44 km/h Dependant On Rider Weight & Terrain |
| Tyres | Front: 16 x 8.00-7 / Rear: 16 x 8.00-7 |
| Voltage | 48v |
| Warranty | 6 Months Manufacturing Defects (Parts Only) |
