FunBikes Ranger 1000w
FunBikes - Electric Mini Quad

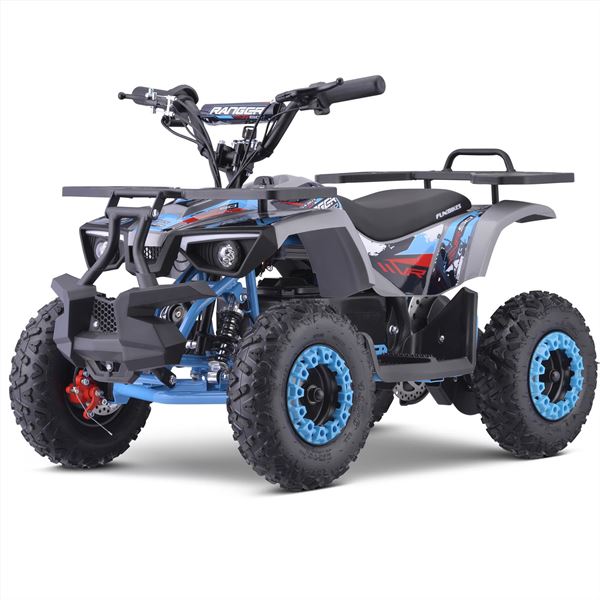

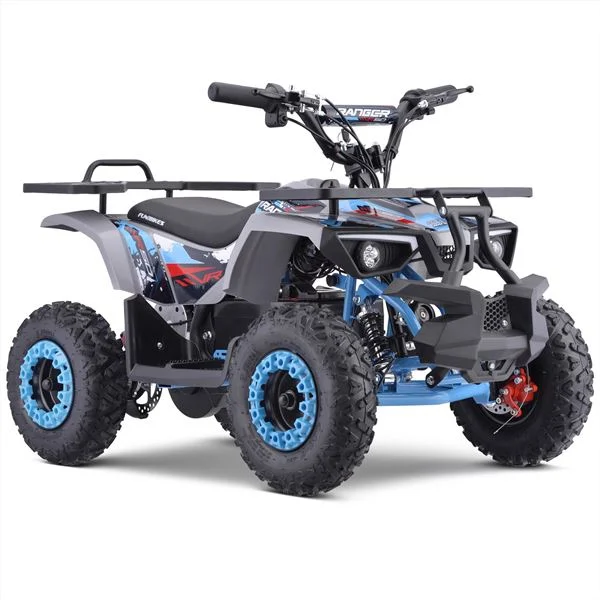

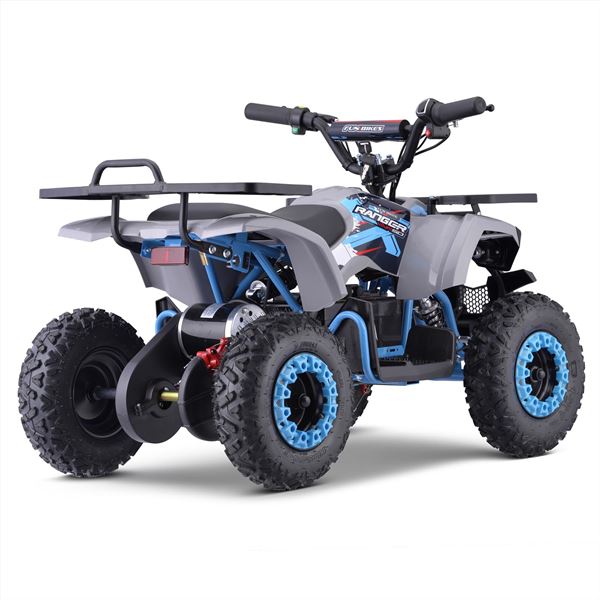

Funbikes Ranger 1000w
Kids will have the time of their lives riding this tough little monster.
The Ranger features LED headlights, big wheel and tyres with a farm style UTV style body, including front and rear racks for the full farm quad look.
Don't be deceived by the images, it looks larger than life and is a great replica, but is a true mini quad – Height is 65cm, Width 66cm and the Length 102cm. This is perfect for younger children.
With great torque and real outdoor rubber tyres, these are not your traditional ride on toys.
Power
Upgraded from the standard 350w and 500w, the quad is fitted it with a fantastic 1000 watt 36-volt hi-torque motor! This gives an equivalent performance of a higher wattage unit, but with a greater reliability.
Wheels
Supplied with larger 6" wheels, for more ground clearance than the traditional 4" fitted to mini quads, to cope with a rougher ground for even more fun. The longer wearing higher grade tyres also give better grip and reduce the number of changes required.
High-Quality Suspension
Three high-grade shock absorbers giving a smoother ride and weight management. Weight Limit 65kg, over 9.5 st.
Three-Disc Brakes
Two front disk brakes and an independent rear disk brake for safety.
Adult Control
A removable key switch controls 3 speeds, the slowest setting being 8 km/h, the middle setting being 15 km/h, and the fastest setting being 20 km/h. Instant Power Shut Off on Brake.
| Battery Specification | 36 Volt – 12AH |
| Battery Type | Lead Acid |
| Brakes | Disc Brakes |
| Charge Time | 5 – 8 Hours |
| Clutch | Automatic |
| Colour | Camo |
| Dimensions | L102cm – W66cm – H65cm |
| Engine Spec | Electric Motor |
| Engine Type | Electric Motor |
| Frame | Chromoly Steel |
| Fuel | Battery |
| Gears | Forward – Neutral – Reverse |
| Gross Weight | 58 Kg |
| Instrumentation | Battery Life Gauge |
| Lights | Front |
| Max Rider Weight | 50 Kg |
| Motor Size | 1000 Watt |
| Other Specs | Not Suitable for Wet Conditions |
| Range | 45 Mins – 120 Mins |
| Requires Some Assembly | Yes |
| Restrictable | Three Speed Settings |
| Rim Size | F: 6 inch – R: 6 inch |
| Safety Features | Fully Enclosed Safety Foot Wells |
| Seat Height | Seat to Footrests 30cm |
| Start Type | Switch On |
| Suspension | Front twin shock – Rear monoshock |
| Terrain | Gentle Off Road |
| Terrain | Tarmac |
| Throttle Type | Twistgrip |
| Top Speed | 3 modes: 5mph / 8mph / 13mph |
| Tyres | Off Road |
| Voltage | 36v |
| Warranty | 6 Months Parts (Manufacturers Defect) 3 Months Battery |
